Products for EV Applications

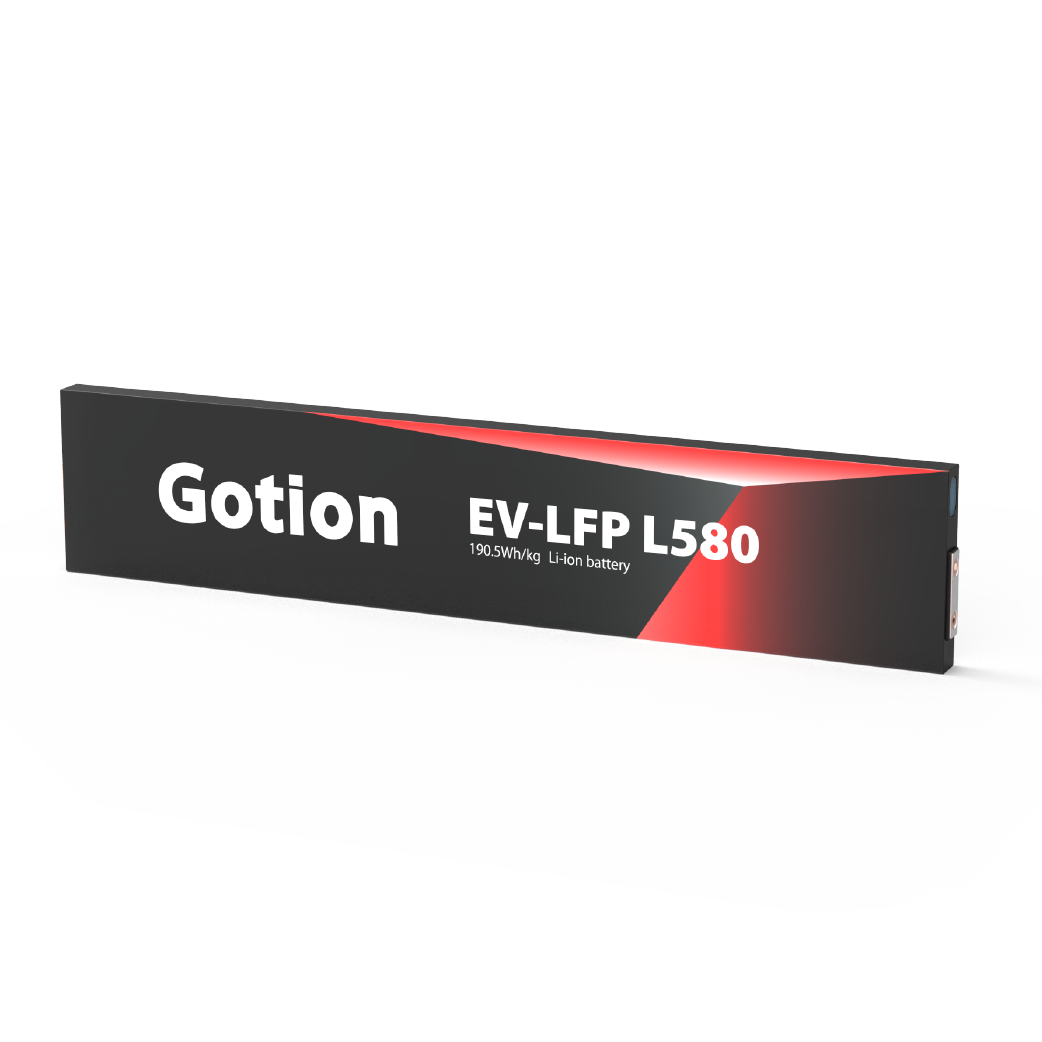

| Model | EV-LFP L580 | EV-LFP L600 |
|---|
|  |  |
|---|
| Size | D18.2x W580x H120mm | D21.3 xW590 x H120mm |
|---|
| Weight | 2785±35g | 3428 ± 35g |
|---|
| Cell Chemistry | LFP/Gra. | LFP/Gra. |
|---|
| Nominal Capacity (@0.33C/1C, RT) | 164.5Ah | 203.5Ah |
|---|
| Energy Density (0.33C) | 190Wh/kg | 188Wh/kg |
|---|
| Volumetric Energy Density (0.33 C) | 421Wh/L | 430Wh/L |
|---|
| Operating Voltage | 3.2V | 2.5~3.65V |
|---|
| Fast Charging Performance (10-80%SOC) | 19 min (Min) | 25 min (Min) |
|---|
| Maximum Continuous Charge/Discharge | 3C/3C | 2C/3C |
|---|
| Maximum Pulse Charge/Discharge | 5C/7C | 3C/5C |
|---|
| Cycle Life (25° C,80%SOH) | ≥ 3000 cycles (Cycles) | ≥2500 cycles（Cycles） |
|---|
| Cycle Life (45° C, 80%SOH) | ≥ 1500 cycles (Cycles) | ≥1200 cycles（Cycles） |
|---|

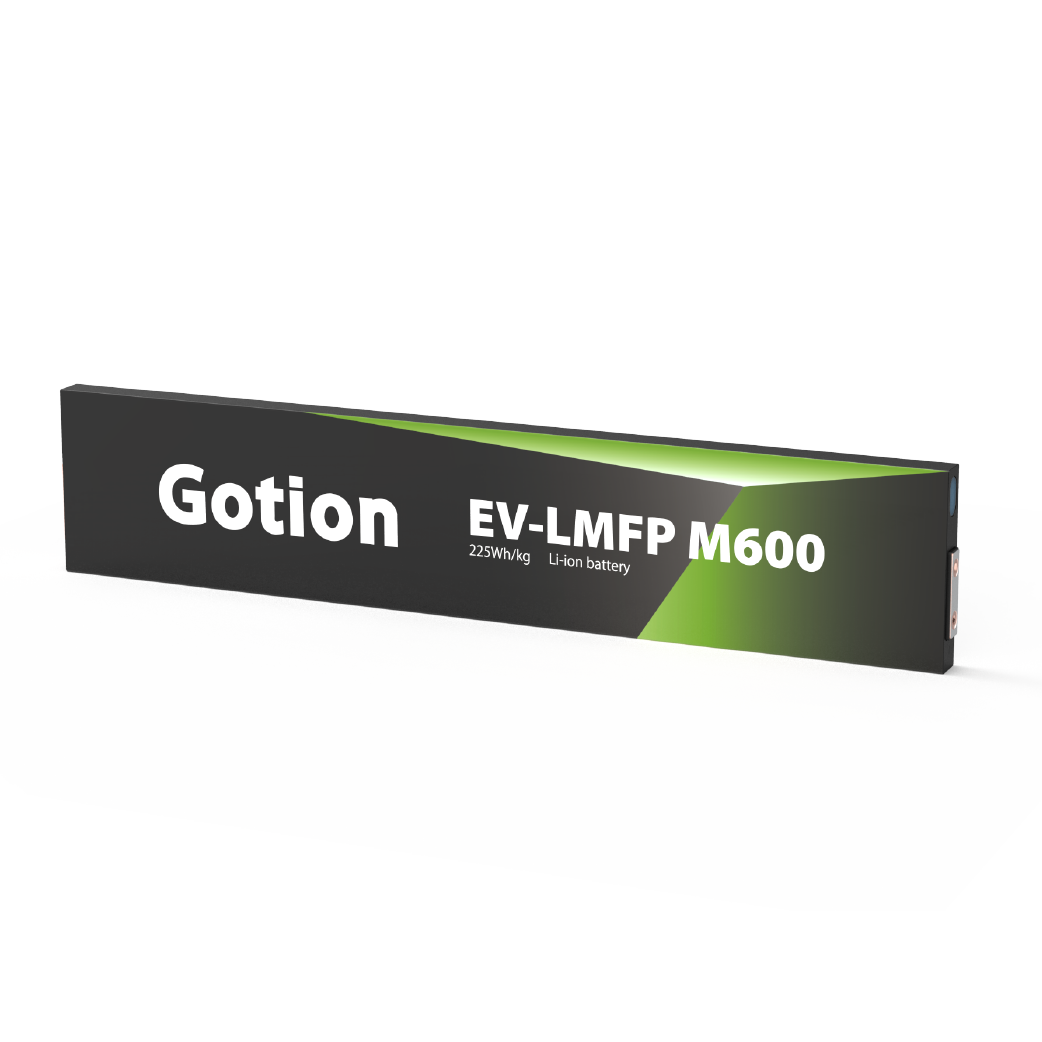

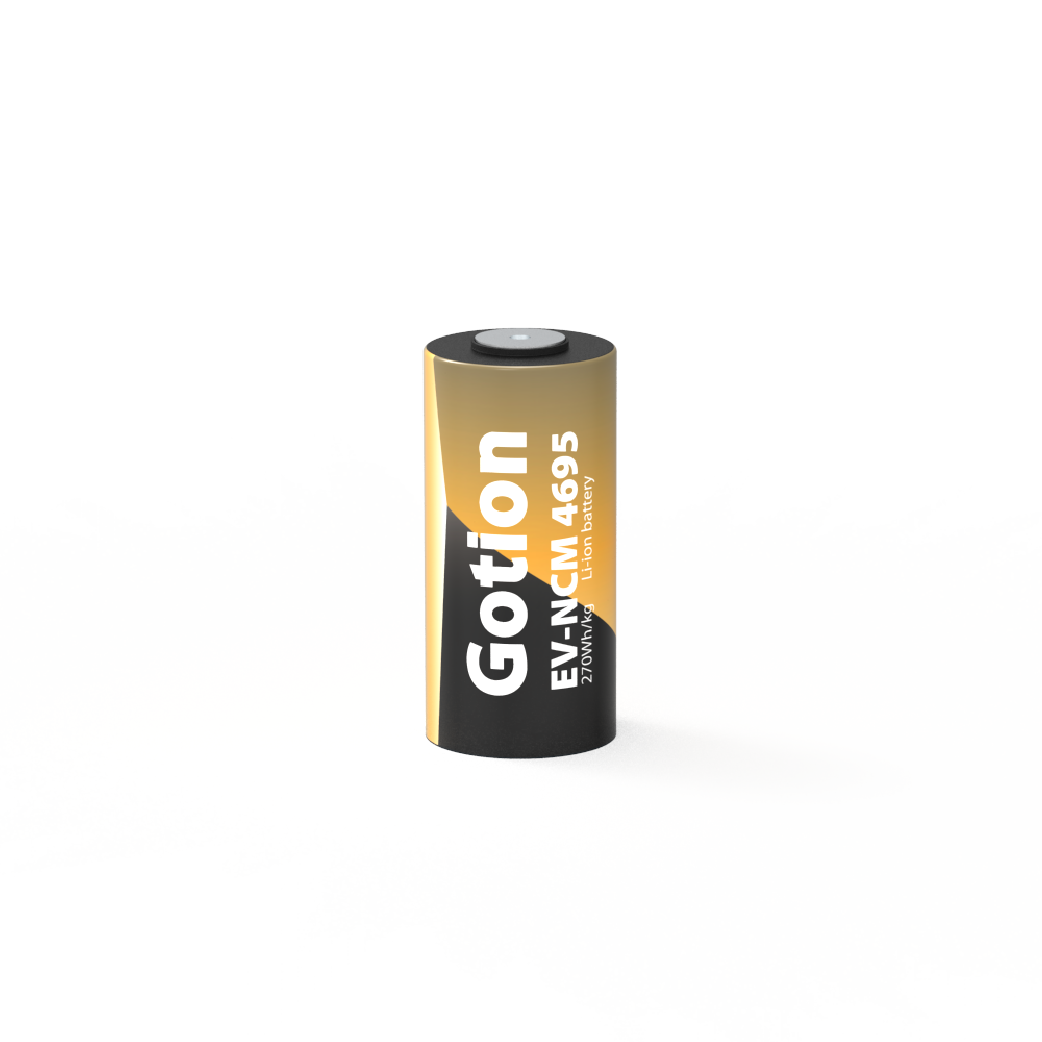

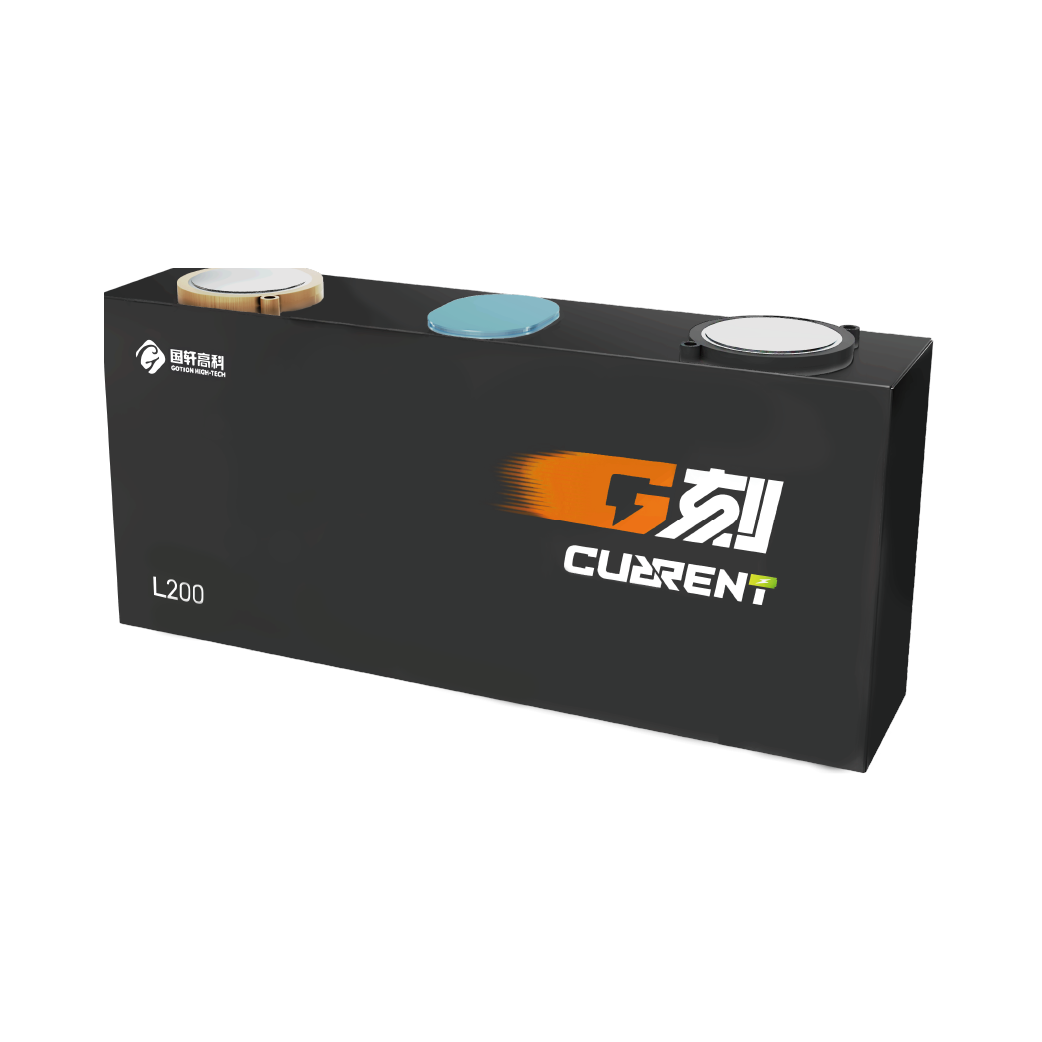

| Model | EV-LMFP M600 | EV-NCM 4695 | EV-LFP L200 |
|---|
|  |  |  |
|---|
| Size | D21.3 x W590 x H120mm | Φ46 × 95mm | D53 × W203 × H92mm |
|---|
| Weight | 3450 ± 50g | 431 ± 5g | 217 ± 4g |
|---|
| Cell Chemistry | LMFP+NCM/Gra. | NCM+Gra.1Si | LFP/Gra. |
|---|
| Nominal Capacity (@0.33C/1C, RT) | 212/208Ah | 31.5Ah | 121.5Ah |
|---|
| Energy Density (0.33C) | ≥ 220Wh/kg | 270Wh/kg | 180Wh/kg |
|---|
| Volumetric Energy Density (0.33 C) | ≥ 500Wh/L | 725Wh/L | 400Wh/L |
|---|
| Operating Voltage | 2.5~4.3V | 2.75~4.25V | 2.0~3.8V |
|---|
| Fast Charging Performance (10-80%SOC) | ≤ 21 min (Min) | 10 min (Min) | 12 min (Min) |
|---|
| Maximum Continuous Charge/Discharge | 3C/4C | 3C/5C | 5C/15C |
|---|
| Maximum Pulse Charge/Discharge | 4C/6C | 9C/14C | |
|---|
| Cycle Life (25° C,80%SOH) | ≥ 4000 cycles (Cycles) | ≥ 1800@SOH 80% cycles (Cycles) | |
|---|
| Cycle Life (45° C,80%SOH) | ≥ 1500 cycles (Cycles) | | |
|---|
